T.I Pro Audio professional line array speakers dual 6.5 inch active powered line array speakers nightclub speakers (S2-rigging)

S2-Rigging system Include 8pcs S2-MD + 2pcs S2-210D + 1pc S2-T1

Brand Name
T.I Pro Audio
Place of Original
China
Model
S2-Rigging
Customized
Yes
MOQ
1

 After-Sales Service and Warranty:

T.I has a professional and efficient after-sales service team, whose members have rich industry experience and technical knowledge, and can provide customers with timely and accurate technical support and solutions.

Personalized pre-sales and after-sales support

We Keep Buyer Information Completely Confidential!

INQUIRY NOW

01

Parameters

Parameters

Model No.

S2-MD
Type Dual6.5" active line array module
Frequency Response (-6dB) 65 Hz-20 kHz
Max. SPL(1m, free space) 131 dB
Power Output (RMS) 200 W
Impedance 4 Ohms
Transducer HF 1 * 28mm polymer compression tweeter
Transducer MF 2 * 6.5" steel frame woofer, 1" voice coil
Ampllfier Class-D Amplifier
DSP Module DSP-100 module with 3 preset modes
Prolection Short circuit overheating, over-current

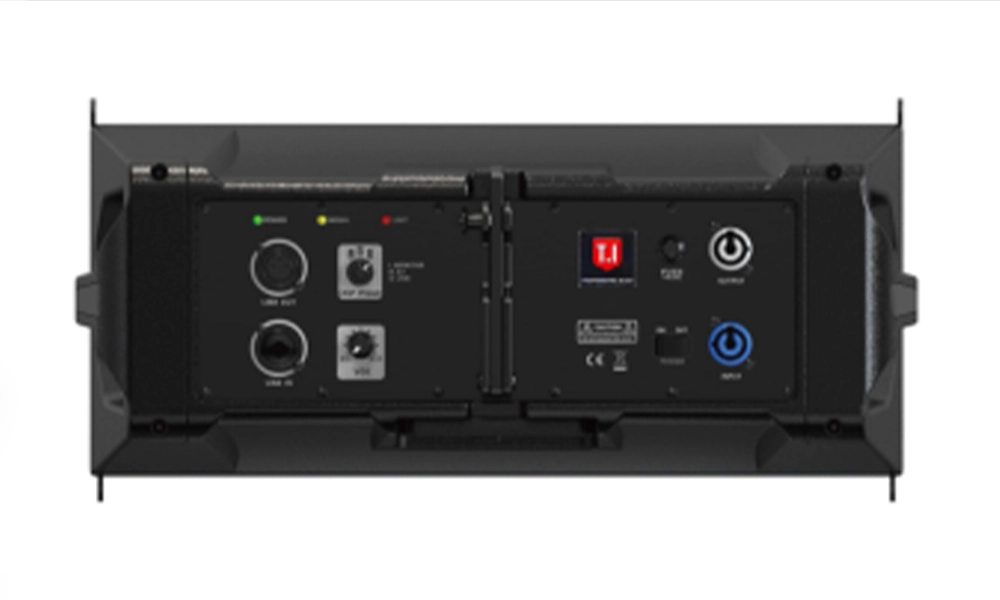

Audio Input/Output Combo XLR/TRS 6.3mm input, XLR output
Power lnput/Output PowerCon
Power Supply 100V~250V 50/60Hz
Enclosure ABS/PP plastic
Grille Metal grille
Package Measure
Gross Welght

Model No.

S2-210D S2-215D
Type Dual 10" active bass reflex, flyable Dual 15" active bass reflex, un-fyable
Frequency Response (-6dB) 40 Hz-120 Hz 40 Hz-200 Hz
Max. SPL(1m, free space) 117 dB 127 dB
Power Output (RMS) 400W 800W
Impedance 8 Ohms 8 Ohms
Transducer LF 2 * 10" subwoofer, 2.5" VC 2 * 18" subwoofer, 3" VC
Ampllfier Class-D amplifier Class-D amplifier
DSP Module LADSP-200S, 96 kHz, 24-bit DSP processor with LCD display
Prolection Short circuit overheating, over-current
Controls Power On/Off switch, main level, mic/line level
Indicators Power, signal, limit
Audio Input/Output 1 * Combo XLR/Jackinput, 1 * XLRinput, 1 * XLR output
Power lnput / Output PowerCon
Power Supply 100V~250V 50/60HZ
Enclosure 15 mm MDF &Plywood Cabinet with regular painting 18 mm MDF &Plywood Cabinet with regular painting
Grille Metal grille Metal grille
Package Measure 450 * 510 * 415 mm
Gross Welght 19KGS

02

Product advantages

Manufacture • Professional • High Quality

 New Model S2 Hanging Line Array System,S2 system includes S2-MD and S2-210D and pole stand, suitable for concert, music mall, events, bar, KTV, etc.

small line array speakers

03

Detail and Feature

Material Introduction

• Italy imported original speaker unit
• Finland imported birch ply wood
• Russia imported painting with 6 times of painting treatment
• High-end components to ensure perfect sound quality
• Our factory line is under Europe standard and use German skill

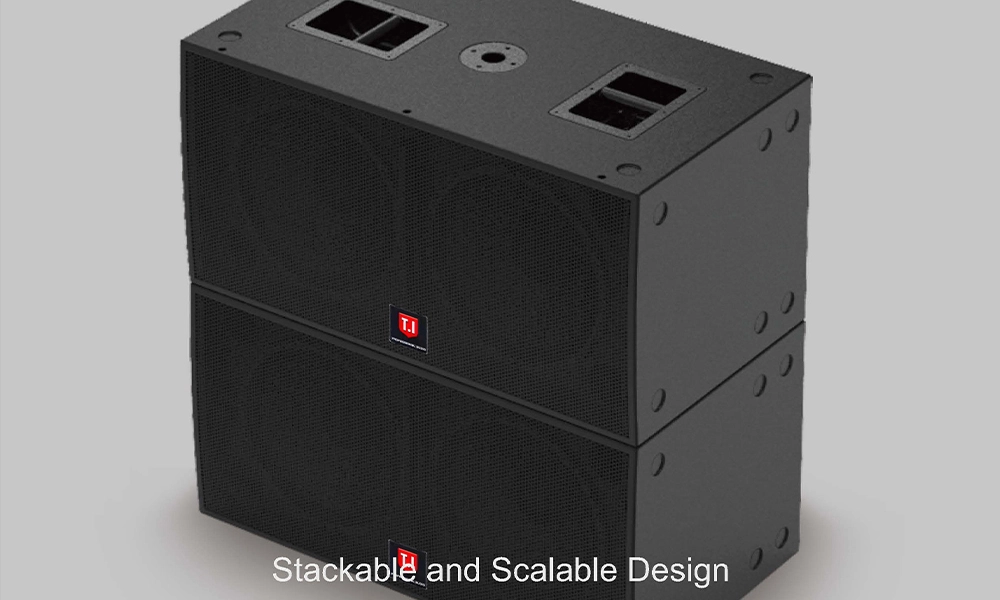

Stackable and Scalable Design
Stackable and Scalable Design
Original Patented Design
Original Patented Design

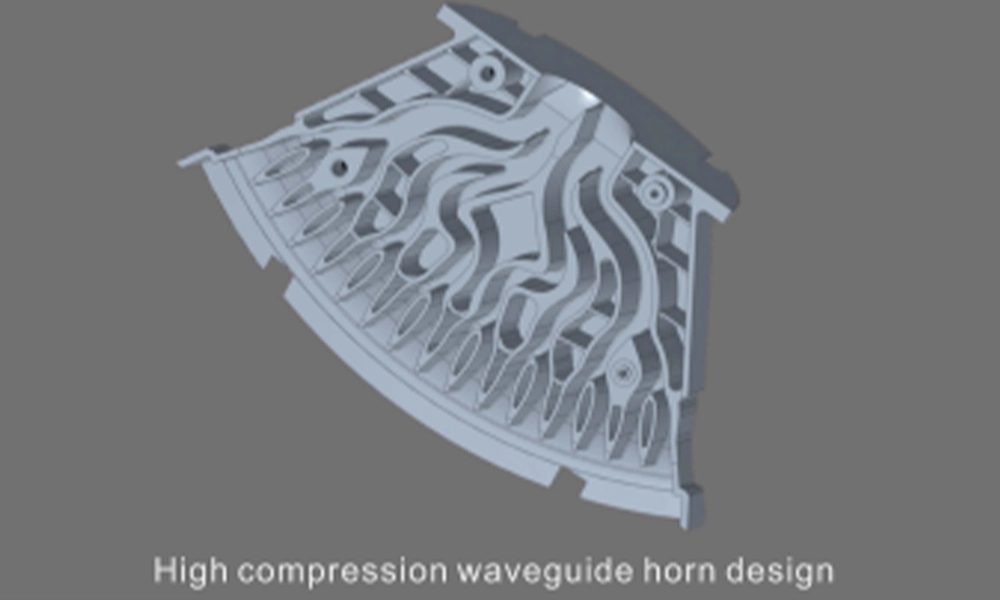

High compression waveguide horn design
High compression waveguide horn design

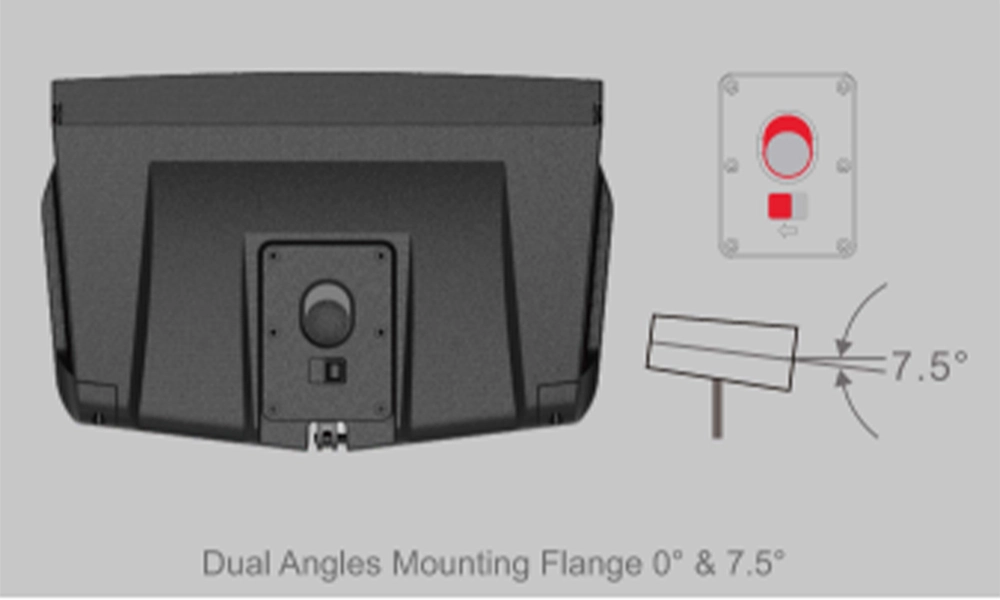

Dual Angles Mounting Flange 0° & 7.59
Dual Angles Mounting Flange 0° & 7.59

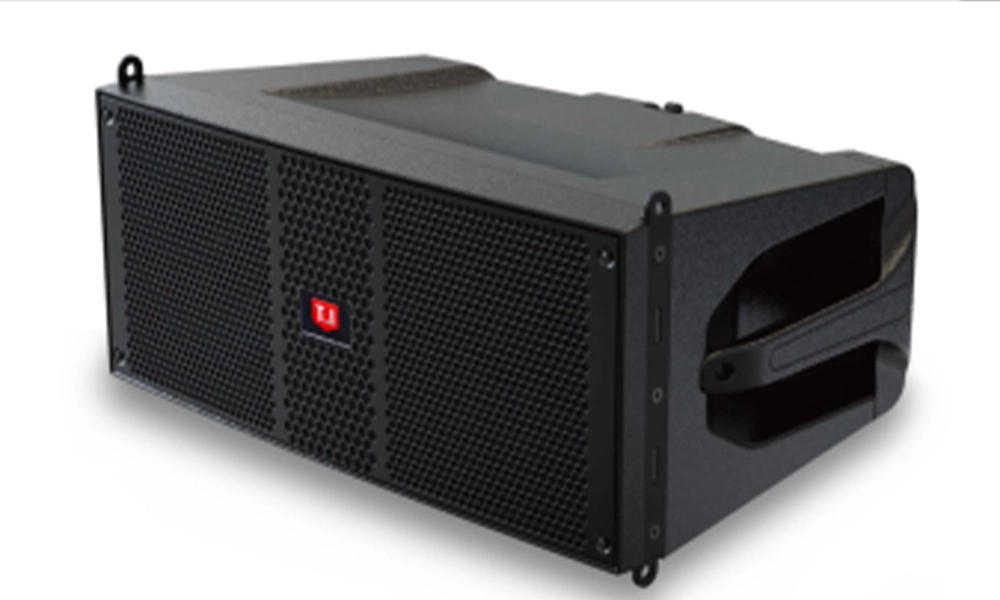

Line Array Module
Line Array Module
pro sound speakers
pro sound speakers
speakers pro audio4
Speakers pro audio
speakers pro audio2
Speakers pro audio

04

Product Application

Application

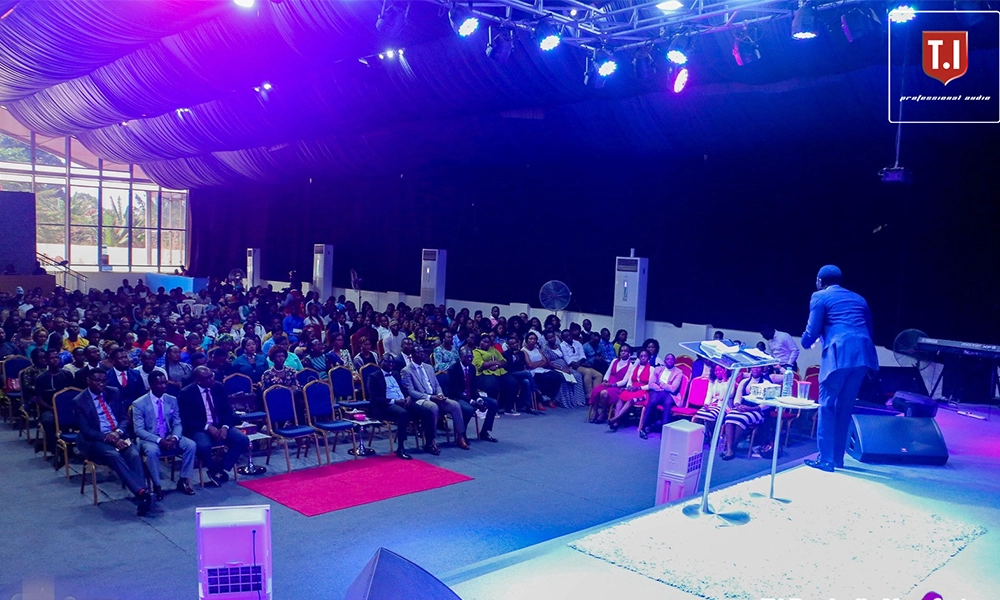

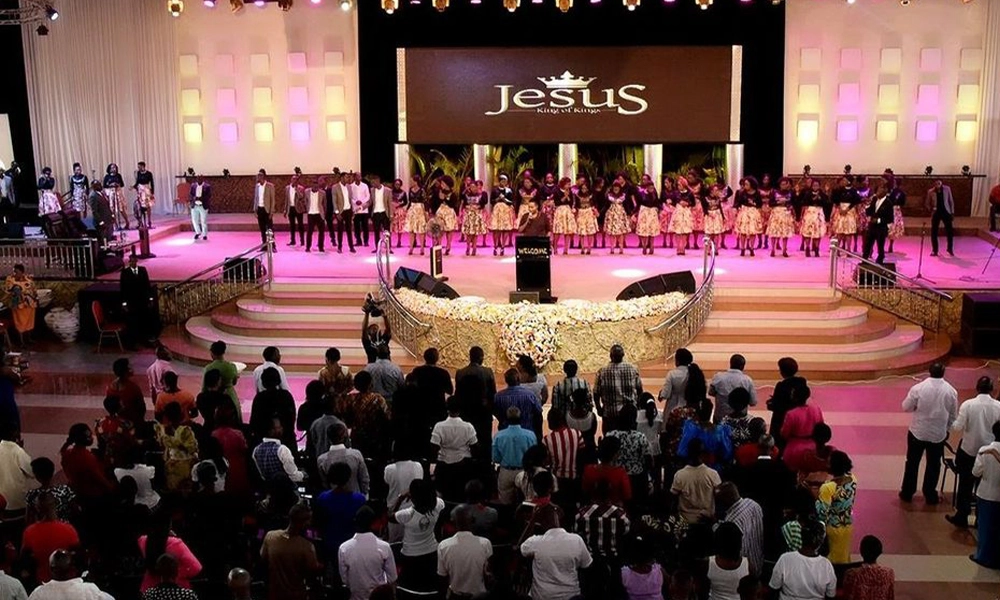

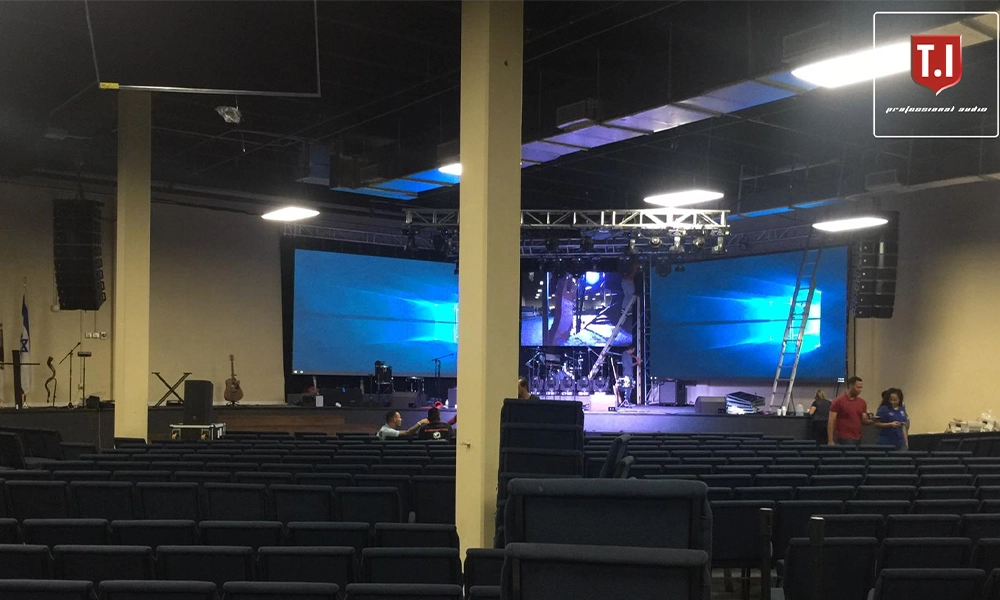

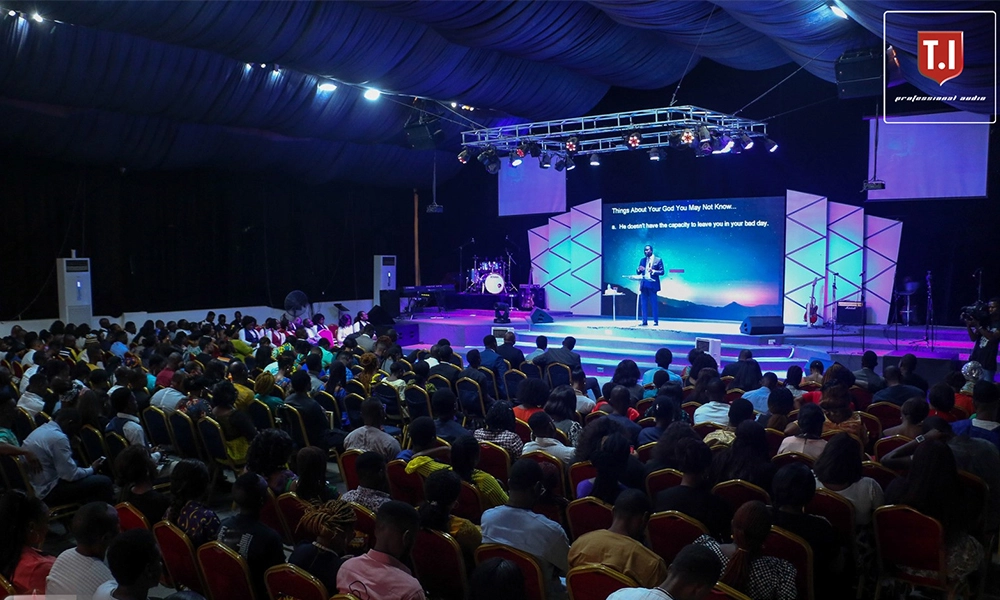

T.I products are sold in over 100 countries around the world and gain a good reputation from their numerous customers. I provide a whole set of pro audio systems for all kinds of events. Including a crusade, wedding, hotel, church, stadium, live sound, DJ show, party, concert, and so on. The best engineers and sales team provide all the services and products you need.

neodymium magnet speaker1
linear array speaker
portable line array
club speaker

05

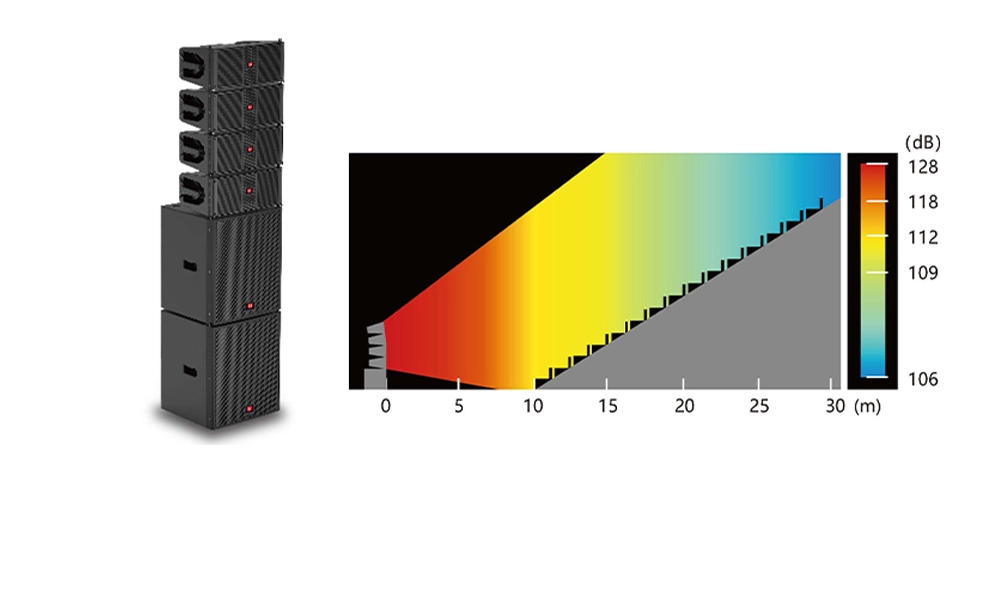

Quick Configurations

Quick Configurations

Because of S2 compact array design, the system can be adjusted to fit for a great variety of Applications and venues such as small and medium scale touring, theater, church, multi-media rooms etc.

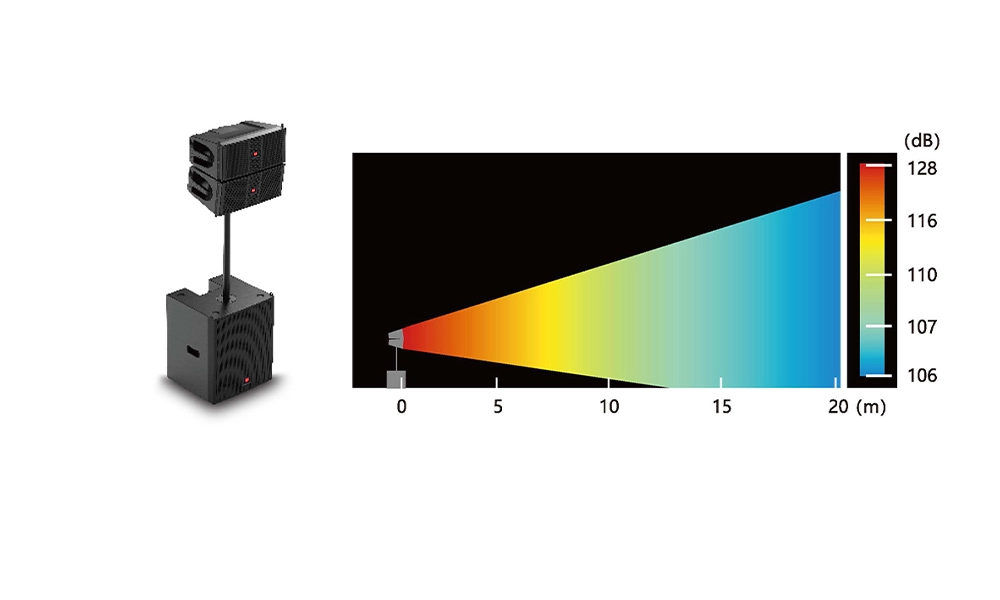

For audiences of up to 150
For audiences of up to 300
Stage fills, Mid-sized touring, Clubs, Outdoor stages, Concert venues
For audiences of up to 300
For audiences of up to 150
Presentation events, Publicspeech, Small venues, Cafes, Bars, Stage fills

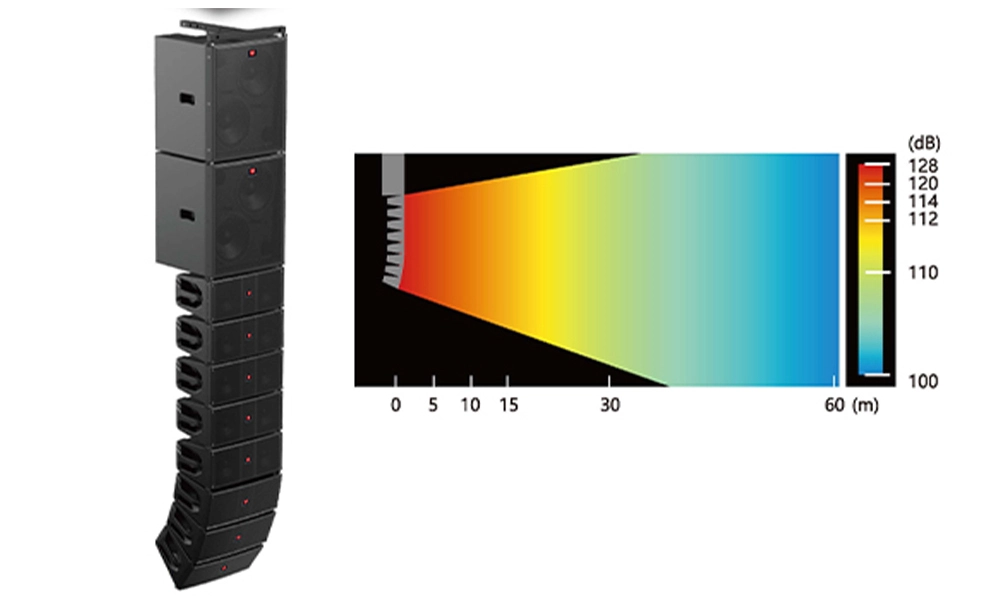

For audiences of up to 1000
For audiences of up to 1000
Touring, Live concerts, Smallfestivals, Multipurpose halls, Event centers
