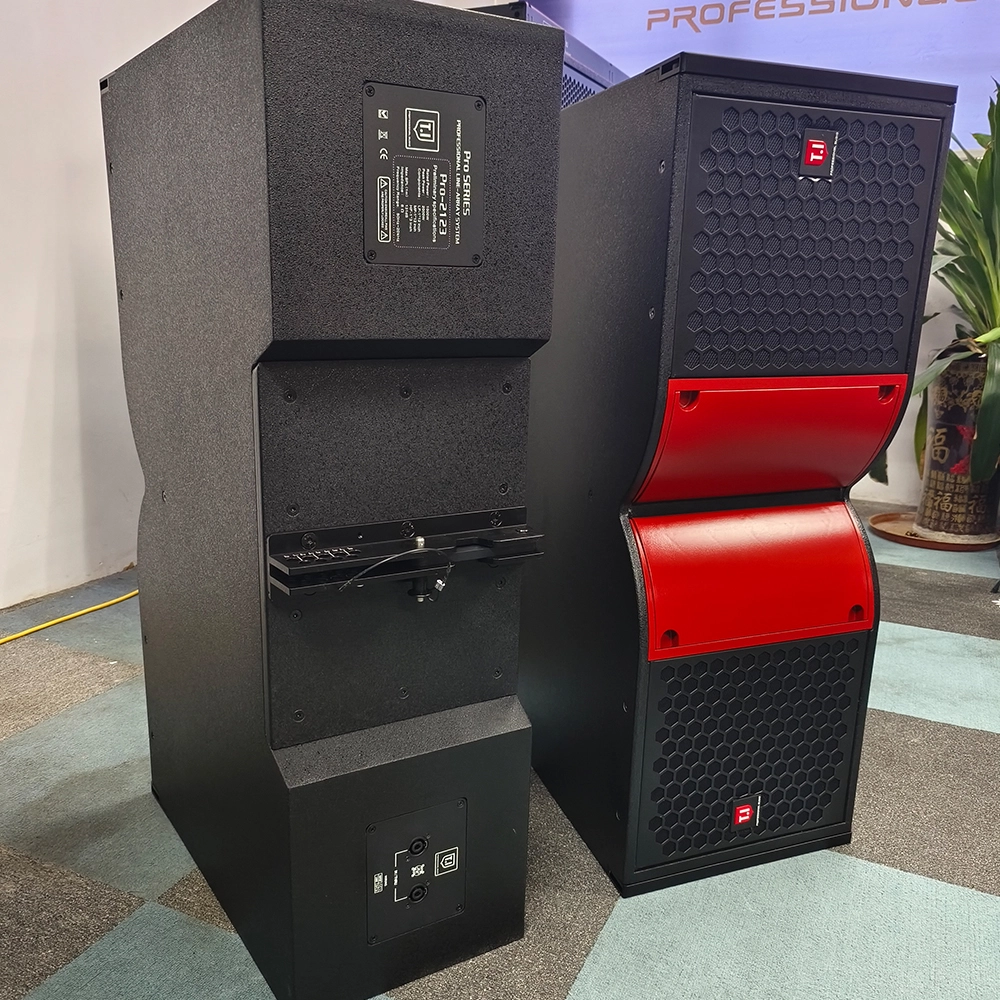

T.I Pro Audio new design waterproof linear array speakers dual 12-inch live sound outdoor concert speaker

Fully set system Pro2123 dual 12 inch line array including Pro2123+Pro218+Pro15M+Amp+Processor+Mixer+Mics with 8 tops and 4 bass,2 monitors,fully set amp,processor,mixer and wireless mics,including cables plugs,fully setting can work for 3000 people live show,DJ shows,sound events..

Brand Name

T.I Pro Audio

Place of Original

Guangdong, China

Model

Pro-2123

Customized

Yes

MOQ

1

After-Sales Service and Warranty:

T.I has a professional and efficient after-sales service team, whose members have rich industry experience and technical knowledge, and can provide customers with timely and accurate technical support and solutions.

Personalized pre-sales and after-sales support

We Keep Buyer Information Completely Confidential!

INQUIRY NOW

01

Parameters

Rated power	LF 1000W/HF 2000W	*Directivity（HV)**	90°*30°
Drivers	LF212'' Neo/HF 13''Neo	Case material	primary birch plywood
Impedance	8 Ohoms	Frequency response	50Hz-20KHz
Max SPL	131dB	Dimension	1040560360mm

No.	Product Name	Model	QTY	Parameter	Image
1	Three way 12 inch passive line array	Pro-2123	8	Pro-2123 adopts passive three-way design, equipped with a 12-inch woofer, a 12-inch midrange unit and a 3-inch compression tweeter. The box shell made of high-grade birch plywood can effectively avoid frequency overlapping distortion, so that it can be optimized in terms of resolution, reproduction and sound image positioning, and has excellent transient characteristics and phase characteristics. -218 subwoofer is used, and the low frequency can be extended to 30Hz. Application fields: stadiums, live performances, outdoor performances, theaters, theaters, multi-function halls, etc. Rated Power Low Frequency: 400W Medium Frequency: 400W High Frequency: 100W Peak Power Low Frequency: 800W Mid Frequency: 800W High Frequency: 150W Input impedance 8Ω Frequency response range 50Hz - 20KHz Sound Pressure Sensitivity (1W.1m Low Frequency: 101dB SPL Medium Frequency: 101dB SPL High Frequency: 106dB SPL Maximum continuous sound pressure level 128dB SPL Peak sound pressure value 131dB SPL Coverage Angle (H×V) -6dB Horizontal: 90 ° Vertical: 30 ° LF 1× 12” Precision LF Transducer IF 1× 12-inch precision IF transducer HF 1×3 inch precision HF driver LF 75mm IF 75mm HF 75mm Cabinet 15 mm thick high-strength birch laminate with internal reinforcement Volume (width × depth × height) 1040mm × 520mm × 360mm Weight Net: 51.5 kg / Gross: 54 kg

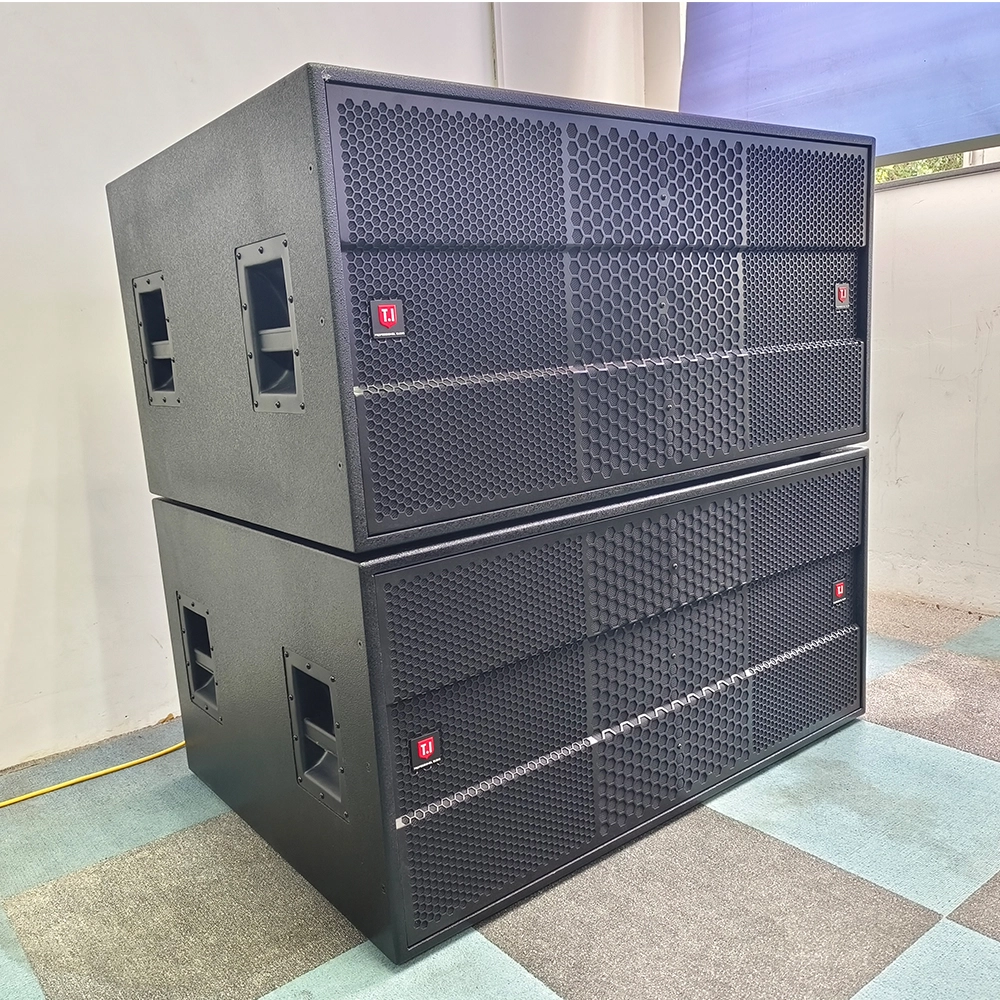

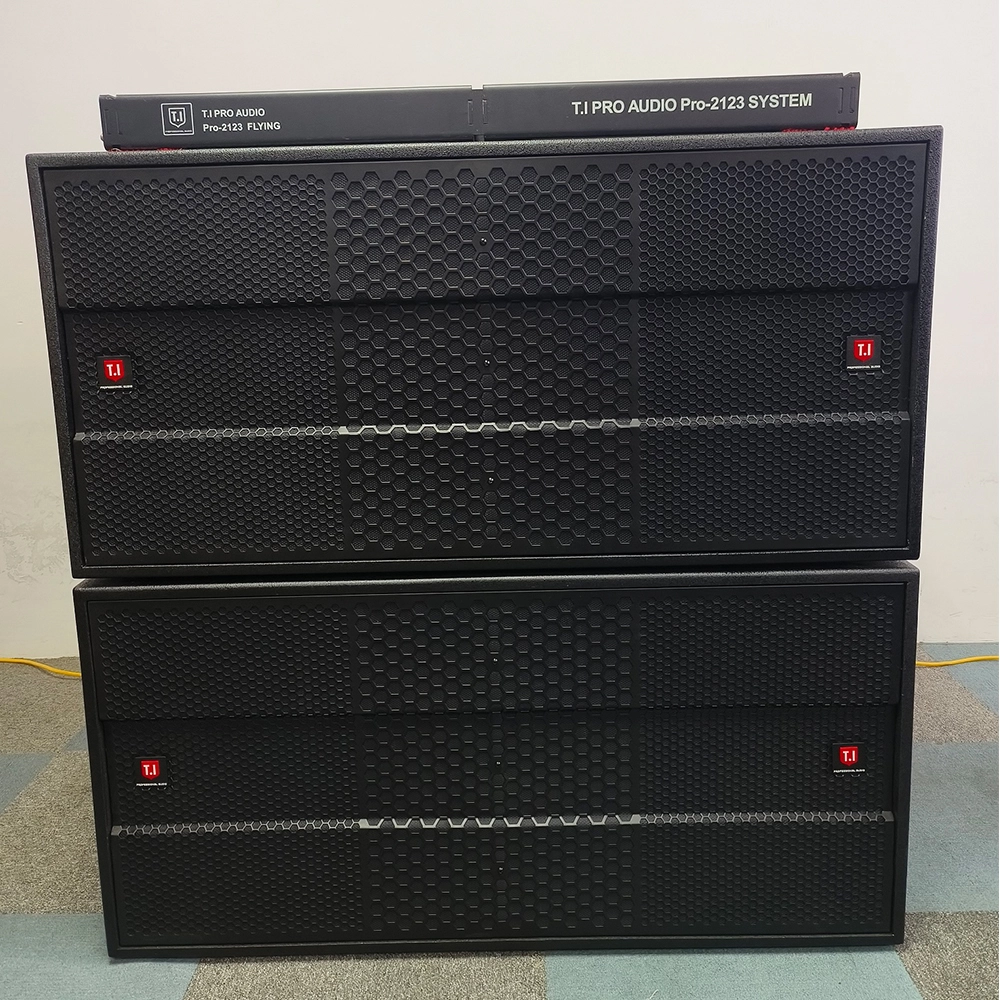

2	Double 18 inches Subwoofer	Pro-218	4	Rated power 1200W Peak power 2400W Input impedance 4 Ω The Pro-218 subwoofer system is equipped with two 18-inch subwoofer audio units, and the high-energy drivers are installed in a well-designed direct-firing cabinet. LA-218 ultra-low audio system is an important part of the full-range audio system, with deep and thick low-frequency output, strong impact, penetration and hearing resistance, it is used in ultra- low frequency response occasions with large dynamic balance. Application fields: stadiums, live performances, outdoor performances, theaters, theaters, bars, multi-function halls, etc. Rated power 1200W Peak power 2400W Input impedance 4Ω Frequency response range 30Hz - 350Hz Sound Pressure Sensitivity (1W.1m) 102 dB SPL Maximum continuous sound pressure level 130 dB SPL Peak sound pressure level 133 dB SPL LF 2× 18-inch precision low-frequency transducers LF 100mm Cabinet 18 mm thick high-strength birch laminate with internal reinforcement Volume (width × depth × height) 1145 mm × 802 mm × 558 mm Weight Net: 84 kg/Gross: 89 kg
3	Monitor speaker single 15 inch	Pro-15M	2	Rated power 500W Peak power 800W Input impedance 8 Ω The Pro-15M is a high-performance full-range monitor speaker with linear curve response, consistent coverage and acoustic output. As a professional choice for large and medium-sized stages, the sound is accurate and deep, the sound is very transparent in the middle frequency band, and the high frequency is delicate. The Pro series set a new standard for live touring and theater monitor effects. Flat amplitude and phase response, combined with a compact size and a stand- alone appearance make the NX series far exceed the capabilities of traditional stage monitor speakers. Frequency response range 55Hz - 20KHz Sound pressure sensitivity (1 watt.1 meter) 100 dB SPL Maximum continuous sound pressure level 124 dB SPL Peak sound pressure level 127 dB SPL Coverage Angle (H×V) -6dB Horizontal: 60 ° Vertical: 40 ° LF 1× 15-inch precision low-frequency transducer HF 1× 1.75” precision HF driver LF 75mm HF 44mm
4	4 channels High Power digital power amplifier	Pro-4150	1	①Rated power (8Ω/channel): 4x1500W ②Rated power (4Ω/channel): 4x2400W ③Rated bridge power (8Ω): 2*4800W ④Frequency response range: 20Hz～20kHz ⑤ Signal-to-noise ratio: >98dB ⑥Damping coefficient: >500 (8Ω) (5Hz-1KHz) ⑦Input ⑥Input sensitivity: 0.77V/26dB/32dB ⑧Input impedance: 20kΩ/Balacde, 10kΩ/un-Balanced Distortion: Less than 0.1% ⑨Slew rate: 15V/uS ⑩Working voltage: AC 230V, 50/60Hz ⑪ Protection methods: power protection, temperature power control, power amplifier output short circuit, overload protection, output DC protection ⑫ Weight: 10.5Kg ⑬ Dimensions: 482x430x44mm
5	2 channels High Power digital power amplifier	Pro-16	1	Number of channels: 2 channels 8Ω output power per channel (under 1% distortion, 1KHz sine wave full power test): 1600W 4Ω output power per channel (under 1% distortion, 1KHz sine wave full power test): 2800W 2Ω output power per channel (under 1% distortion, 1KHz sine wave full power test): not recommended 8Ω per two-channel bridge output power (under 1% distortion, 1KHz sine wave full power test): 5600W 4Ω per two-channel bridging output power (under 1% distortion, 1KHz sine wave full power test): not recommended Frequency response (1W, 0.1%THD, +0/-1dB): 5Hz-22KHz (plus or minus 1db) Total Harmonic Distortion ((8Ω full power, tested under 20Hz-20KHz): <0.06% Conversion rate: 20V/us Damping coefficient (100Hz): >1200 Signal-to-noise ratio (full A): 100dB Channel separation: 75dB Input sensitivity: 0.775V/1.0V/32db (optional) Input impedance: 10Kohms unbalanced/20Kohms balanced Net weight, gross weight: 6.2KG/7.5KG Body size: 48288200mm/2U standard chassis Input power: ~220-240V/50HZ~60HZ(MAX~70-280V)
6	2 channels high power professional power amplifier	Pro-8	1	Rated output power: 800W2 (8Ω), 1200W2 (4Ω), 2400W bridge Using Japan's ELNA top audio capacitors, the sound is transparent, smooth, dense and powerful. Unparalleled singing texture, strong and linear vocal performance. Perfect and accurate protection circuit, more effective protection of matching speakers. All adopt automatic manufacturing processes such as SMD patch and laser scanning, and all semiconductor components are imported, which greatly improves the reliability and consistency of products. Fully consider the use of entertainment private rooms and multi-coal bodies to enhance competitiveness and practicability. Designed for entertainment, multi-coal conference design. Frequency response 20Hz-20KHz(±0.02dBr) Total Harmonic Distortion <0.10% Signal-to-noise ratio >95dB Damping coefficient ≥240 Conversion rate＞15V/us Voltage gain 39.3dB Protection DC/Short Circuit/Temperature/Overload/Volume Up/Distortion Limit Dimensions (WDH): 48233388mm Net weight 12.8kg
7	4 in 8 out digital audio processor	Pro-48	1	●4-way balanced input, 8-way balanced output. ● 32-bit DSPSHARC chip processing, 96kHz sampling rate, 24bit AD/DA conversion. ● The input processing part includes high-cut, low-cut, 8-parameter equalization, noise gate, gain, mute, phase, delay, linkage adjustment and other processing functions. ● The output processing part includes frequency division, 9 parameter equalization, gain, mute, compressor/limiter, phase, delay, linkage adjustment and other processing units. ● PEQ gain, bandwidth, and frequency of all channels are continuously adjustable, and the types can be selected: parametric equalization, low-shelf filter, high-shelf filter, low-cut filter, high-shelf filter, phase shift 1st order, phase shift 2nd order. ● All input and output can be allocated freely in matrix, and the name of each input and output channel can be changed. ● All input and output channels have an independent phase curve adjustment function. In the PEQ type selection, the first step of phase shift is 180 degree curve adjustment, and the second step of phase shift is 360 degree curve adjustment. ● For all high-cut and low-cut filters, the type of frequency divider can be selected: Butterworth, Linkerelli, Bessel, and the slope can be selected from -6dB/Oct to -48dB/Oct. ● Threshold value, ratio, attack time and recovery time of output channel compressor/limiter are adjustable continuously. ● The delay modules of all input and output channels have a delay time up to 680ms. ● Parameter settings between any channels can be freely copied, and any channel can be adjusted in conjunction. ● You can see the PEQ curve adjustment graphs of all current input or output channels in any input or output channel. ● Built-in test signal generator, the output mode can be selected pink noise, white noise and 20Hz-20kHz sine wave adjustable, the signal amplitude is adjustable ●The front panel is equipped with input and output level indicators, USB control ports, and the rear panel 232&485 control ports. One-button connection makes the user's operation easier and faster. ● 30 user presets, the machine status and each preset can be stored and recalled separately. The ID setting function can cascade control 255 machines, and it also has a password protection function to make the equipment more secure. System Specifications Frequency Response 20Hz-20kHz, -0.3dB Dynamic range 115dBu Distortion<0.008% at 1kHz(0dBu) Crosstalk>70dBu, 20Hz-20kHz Common analog ratio >75dBu 1KHz Input Section Type Balanced XLR Connector Gain 35dBu Maximum input level +18dBu Impedance 1MΩ/stereo; 500KΩ Output Section Type Balanced XLR Connector Maximum output level +18dBu Impedance<500Ω/Mono Digital processing part 24bit sigma-delta A/D, D/A conversion (24bit sigma-delta A/D, D/A) 32 bit SHARC DSP, 96kHz sampling rate Display Dot matrix LCD display current parameters and all settings
8	12 channels and 2 groups Mixer	Pro-12	1	A real two-group mixer, 12 mono channels and 2 groups of stereo inputs, high-quality, low-noise balanced microphone input, each microphone input is equipped with high-quality +48V phantom power supply, three-band equalization of intermediate frequency sweep, British style, 2 groups of AUX auxiliary output, can be connected with external processor, high-precision three-color precise level column, accurately display output level, 100-stroke high-resolution fader, built-in DSP digital 24bit effector, 7-segment stereo graphic equalization MP3 player with USB interface and recording (optional with Bluetooth function), built-in squelch switching power supply, easy to use and flexible. Channel Channel:12 Mono+2 Stereo; Channel equalization Channel EQ:3 Band+Mid sweep; Auxiliary output AUX:2; return Return: 1; Effector Effect: 24Bit DSP; Main output Main Out: 1 Stereo; Group output Groups:2; Phantom power Phantom power; Master equalization Main EQ: 7 segments. Dimensions (WDH):500440120mm Weight: 6.6KG
9	True diversity wireless handheld microphone	Pro-880A	1	Product introduction: Mainly for large-scale performances, complex environments, school playgrounds, stadiums and other occasions that require high fidelity, high reproduction or long-distance sound transmission, increase power, increase sensitivity, mature ID technology to prevent interference, and efficient transceiver technology to prevent frequency interruption , Multi-level distance setting to adapt to different environments, automatic frequency search, infrared frequency pairing, the effective distance measured on straight roads is up to 500 meters, the actual environment depends on the complexity. When using stacking machines, lower the receiving sensitivity appropriately, and 5 stacking machines can be used at the same time. 10 units can be installed in two cabinets, and a maximum of 20 microphones can be used in the same field. Dual Tuned True Diversity hand microphone swap Adjustable transmit power Anti-drop and shock-proof design of mesh head and tailpipe All metal structure, more texture and mechanical strength Adjustable 128+128 channels Automatic search for free channels, infrared synchronization, digital identity verification (ID) Adjustable squelch (distance) Operating distance 500 meters (open distance) digital electronic volume
10	Power sequencer	Pro-382	1	1 panel color: black 2 Power input conditions (single-phase 3-wire): AC90-260V 50-60HZ two-phase (three-wire: zero, fire, ground) 3. Number of channels: 8-way universal socket relay controlled and 2-way universal socket direct output 4 Relay controlled output maximum withstand single power/total power (reactive power): 5000W/8000W maximum withstand reactive power 5 Output power socket specifications: flame retardant ABS material, brass material that can withstand a maximum current of 13A, standard universal socket 6 Functional features Functional features: 1. Sequential opening and reverse order closing 2. Accurate voltage display 3. Overcurrent protection 4. Panel channels are independently closed 7 Interval time/timing time of each switch: 1 second by default 8 output relay contact current: 30A 277VAC 9 Circuit board specifications: double-sided fiberboard, secondary thickening and roughing of main power wiring 10 Power supply specifications: built-in switching power supply, applicable to global voltage AC90-260V 50-60HZ 11 Main cable specifications: 3*4 cables, the total length is 1 meter (with power input plug) 12 Opening type: self-resetting switch 13 Single-channel independent switch function: support panel independent control 14 function display voltage display meter type: red digital tube
11	Rack case	T.I	1	12 U rack case for install the amp system
12	Connecting cables	T.I	set	A complete set of speaker cables
13	Flying frame for line arrays	Pro-2123	2	Pro-2123 Line Array Speaker Hanger

02

Product advantages

Manufacture & Professional & Unique

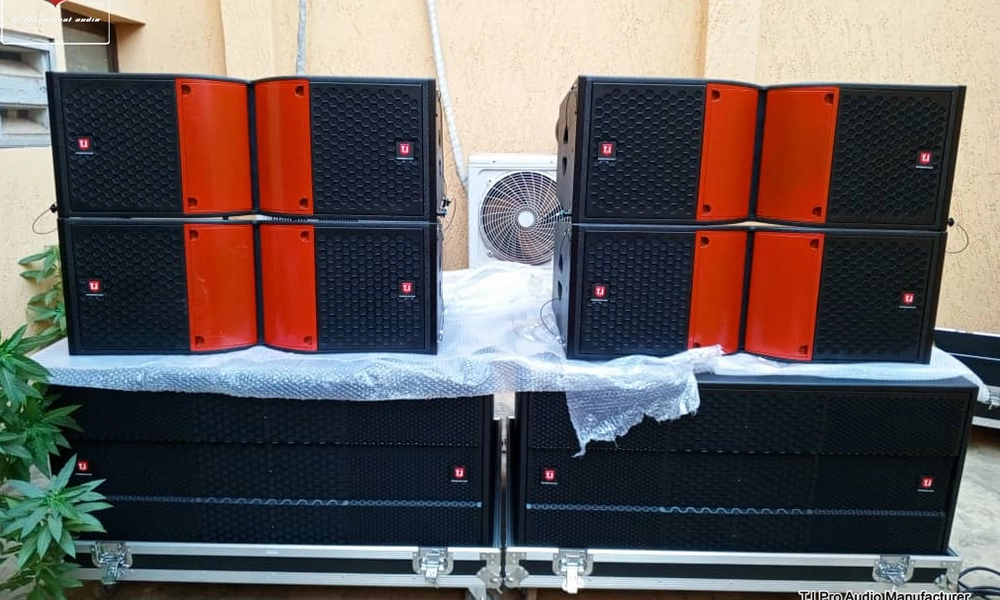

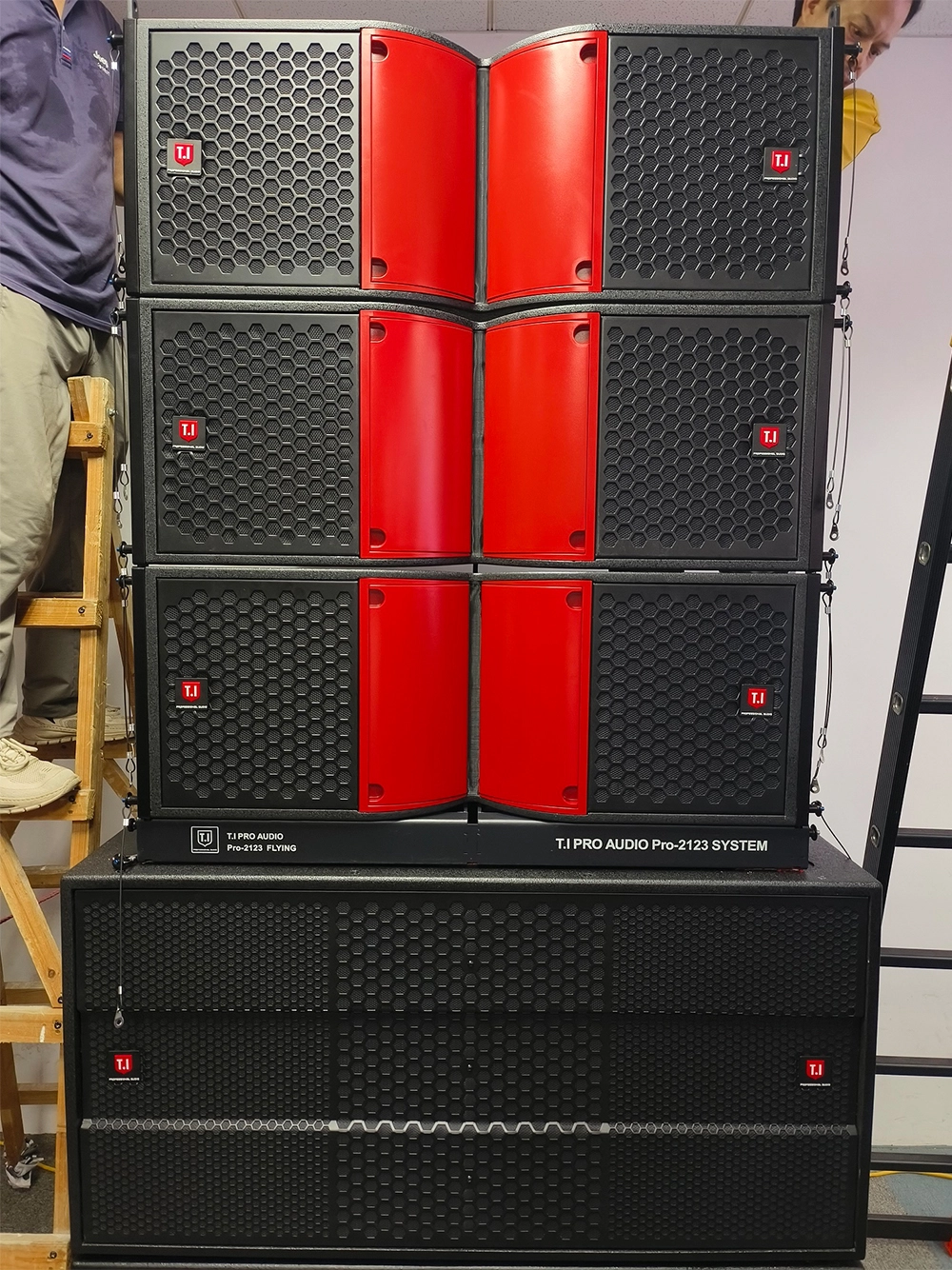

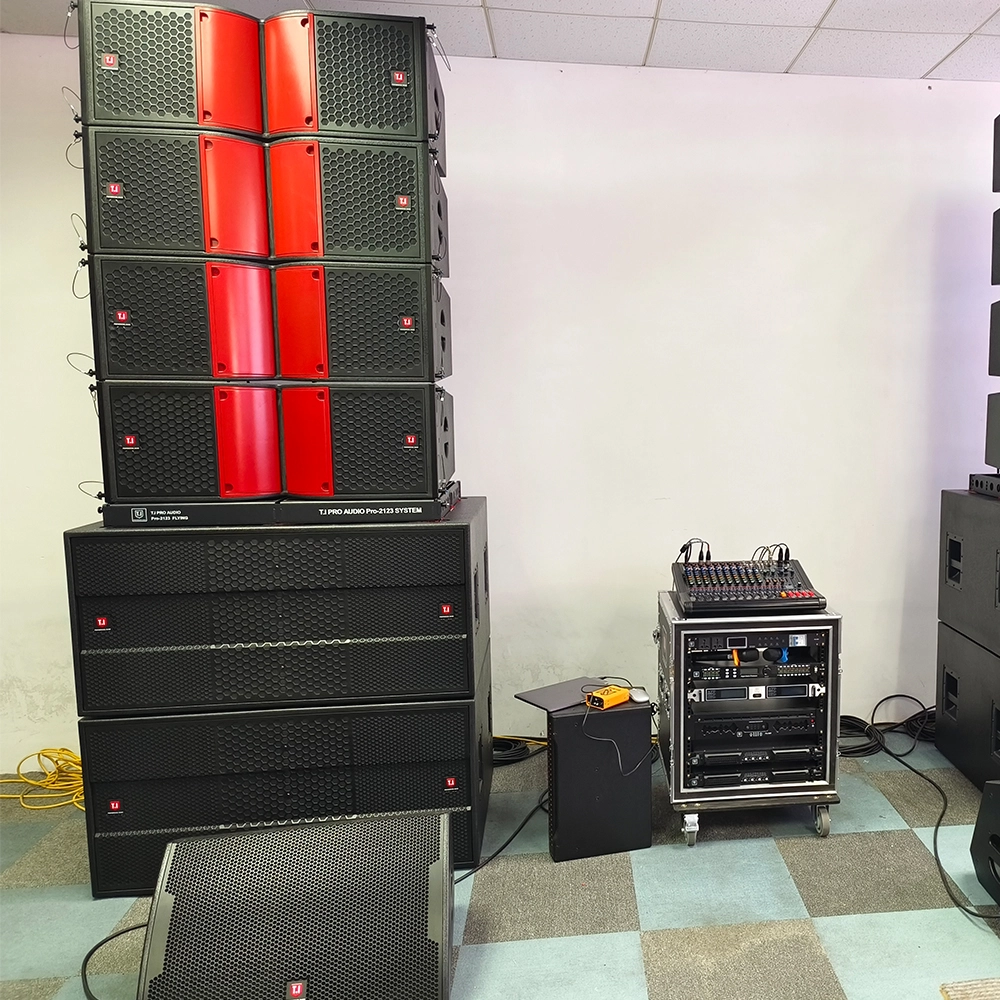

Fully set system Pro2123 dual 12-inch line array including Pro2123+Pro218+Pro15M+Amp+Processor+Mixer+Mics with 8 tops and 4 bass, 2 monitors,fully set amp, processor, mixer, and wireless mics,including cables and plugs, fully setting can work for 3000 people live shows,DJ shows,sound events.

With dual 12 inch LF and 3 inch high frequency and a dual 18 inch subwoofer, make sure the full system has very powerful sound with T.I brand reputation

03

Detail and Feature

Material Introduction

We pay attention to the production of every detail of our products to ensure that they are delivered with the utmost perfection.

• Italy imported original speaker unit

• Finland imported birch ply wood

• Russia imported painting with 6 times of painting treatment

• High-end components to ensure perfect sound quality

• Our factory line is under Europe standard and use German skill

Outdoor concert speakers

Live sound speakers

Line array system

Linear array speakers

04

Product Application

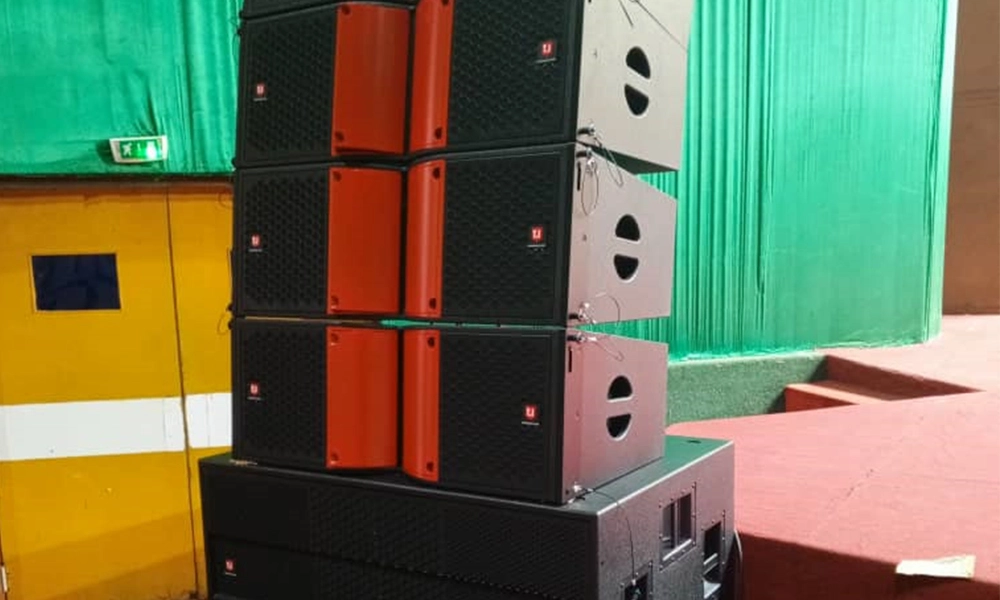

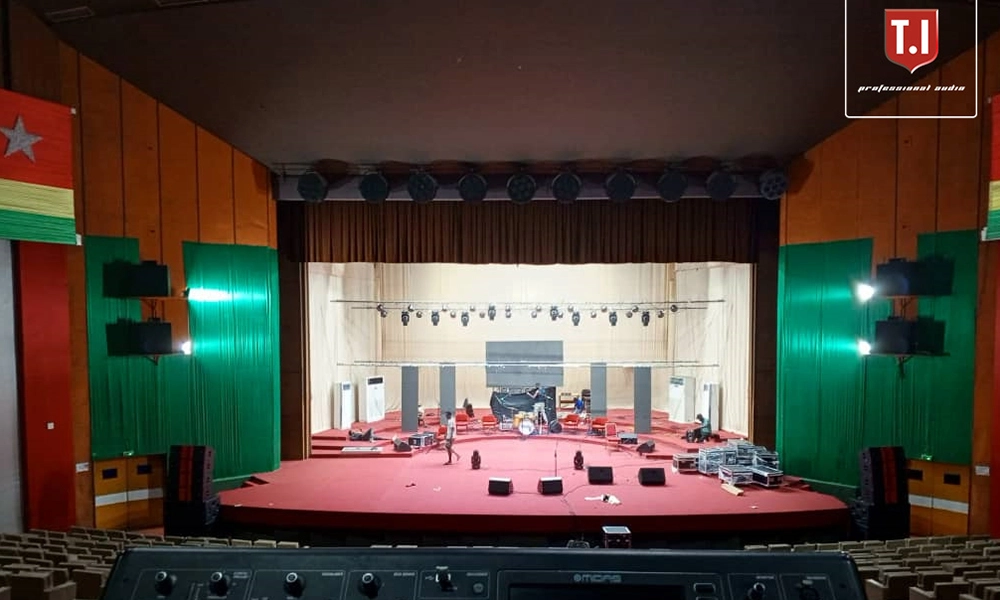

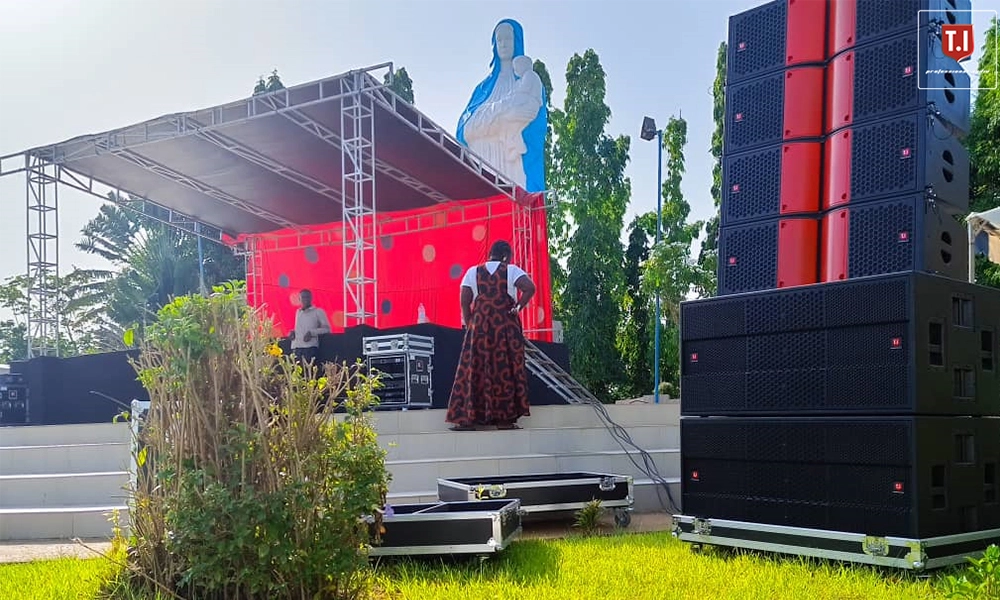

Application

T.I products are sold in over 100 countries around the world and gain a good reputation from their numerous customers. I provide a whole set of pro audio systems for all kinds of events. Including a crusade, wedding, hotel, church, stadium, live sound, DJ show, party, concert, and so on. The best engineers and sales team provide all the services and products you need.
